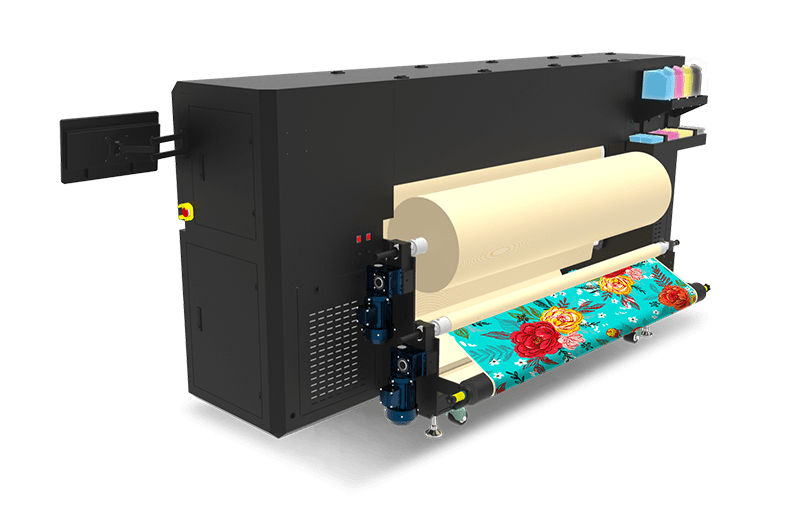

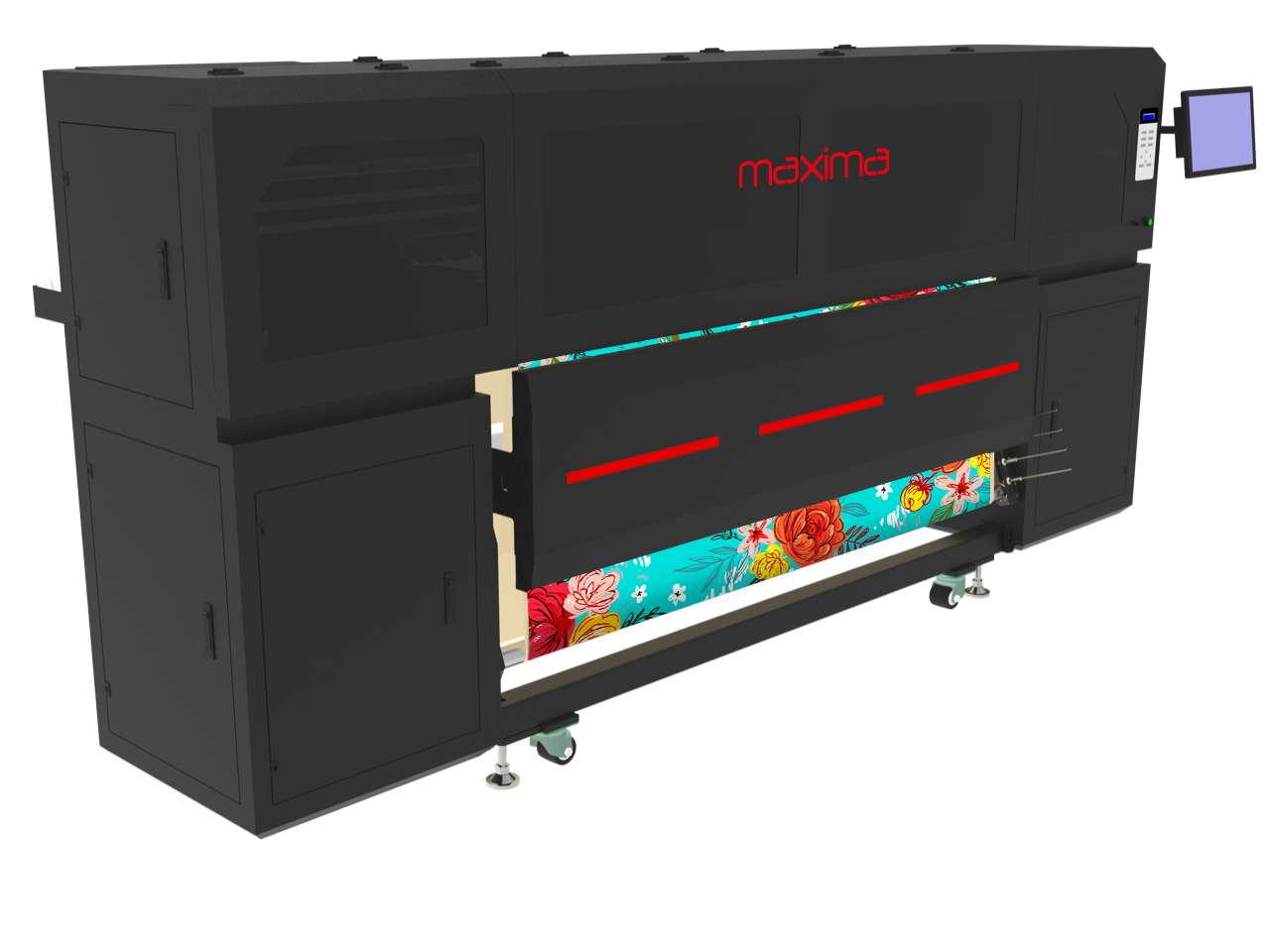

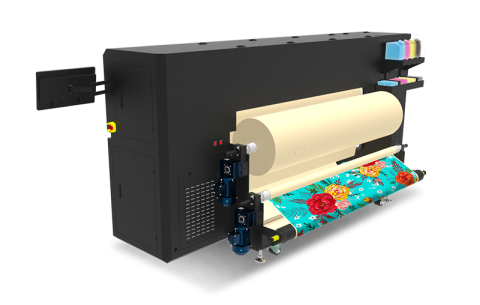

RETINA TP 200

TRANSFER BASKI MAKİNESİ

RETINA TP 200

1

Model TP-200 Default Printhead Epson i3200 or Espon4720
Print Resolution 300×600,600×600,1200×1200 Dpi Print Speed 8-6 EPSON
320m2/h, 260 m2/h
Colors CMYK Ink Dye Sublimation, Water Base ink
Ink Supply Method Automatic degassing, automatic
negative pressure system
RIP Software Photoprint  (NeoStampa optional)
Media System Volume to volume Printhead Maintain Automatic cleaning, Automatic moisturizing
Material Width 2050mm Print Width 2000mm
Material Heat transfer paper Coil Specifications The maximum
diameter of 1200 mm
Weight Capacity 800 kg Heating System PID constant temperature control
Temperature 25-28⁰C, Humidity: 50%-65% Package Size 3900x1600x1900cm
Power Supply Hosts: AC220V+10% 50/60HZ,10A
Dryer: AC220V+10% 50/60HZ,16A
Pressure 0.6 Mpa (Dry gas)
Printer Size 3720x1400x1730mm Weight 650 kg

Supporting multiple printing mode, fast adapting to different heat transfer paper, no needing to always adjust parameters.

Dual Rail is applied in X axis to ensure high resolution and stability.

Hi-precision reduce gears and transmission shaft are applied to make sure a high precise and stable stepping.

Auto ink-shave, anti stop when paper runs out, man-free operation.

Touch panel interface are applied to enable a more stable,convenient and humanized system.

Heating system pause automatically while carriage is printing.

  • 2.0 meters width
